Features:
Ultra-thin (61 mm) for canopies, behind seats and more tight spaces
9x slower temperature rise enhances safety & reduces thermal runaway
Versatile mounting with vibration-resistant bracket kits
10A reliable charging in freezing conditions down to 14°F/-10°C
Powering a 2000W inverter with a single battery at 200A high output
Renogy 12V 200Ah Pro LiFePO4 Battery
Renogy's safest 12V 200Ah LiFePO4 battery for all-weather living
The Next-Gen LiFePO4 Cells
Renogy takes a step forward to introduce the solid state cells with 90% electrolytes in RV batteries (so far there is no solid state battery with 100% electrolytes on the market), bringing safety and lifespan to the next level.
Inherently Safe & Stable
The new Renogy slimline LiFePO4 battery introduces revolutionary solid electrolytes, ensuring that the battery does not swell or burn when getting punctured or crushed.

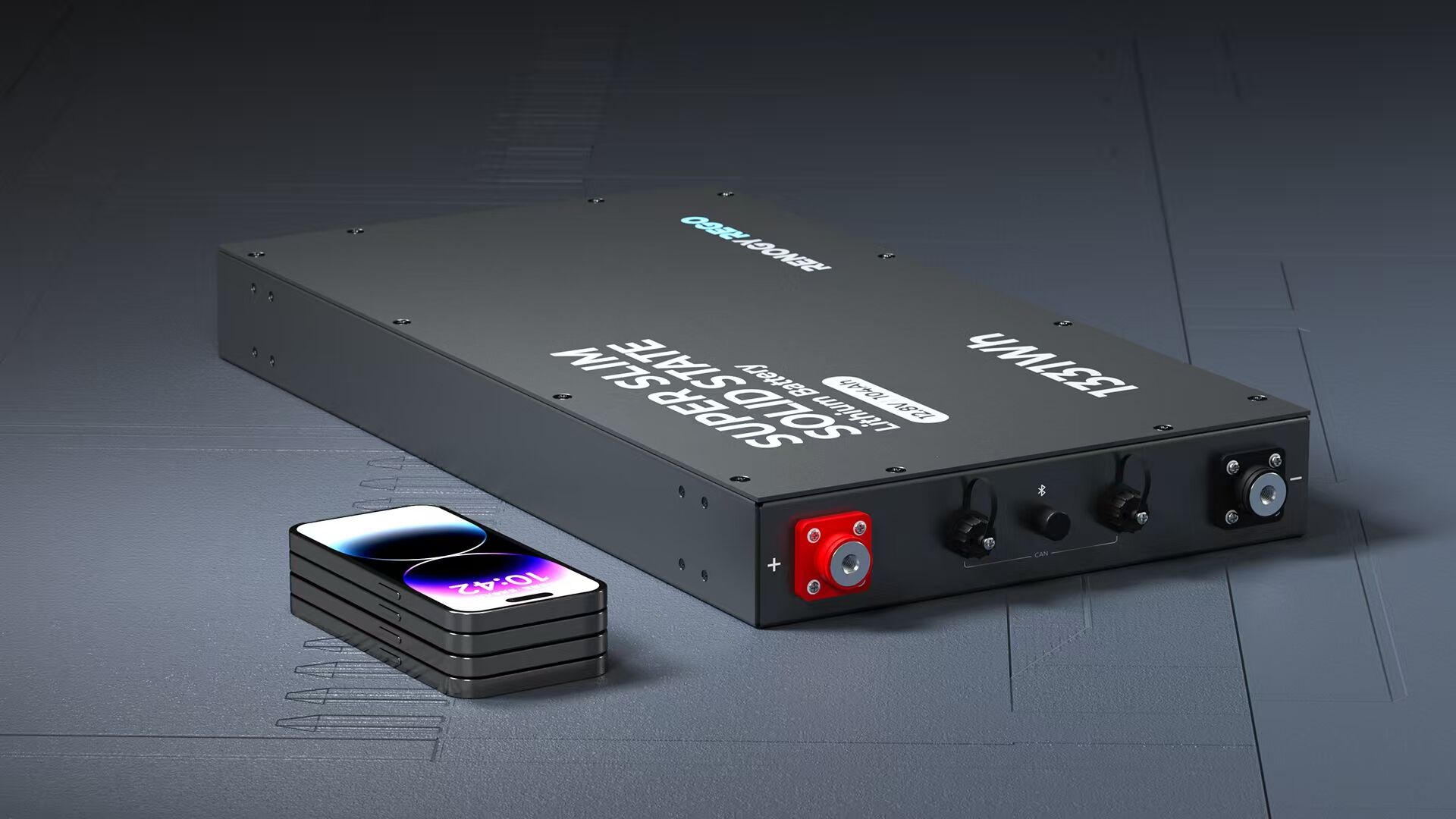

Super-Slim Design. Effortless Installation

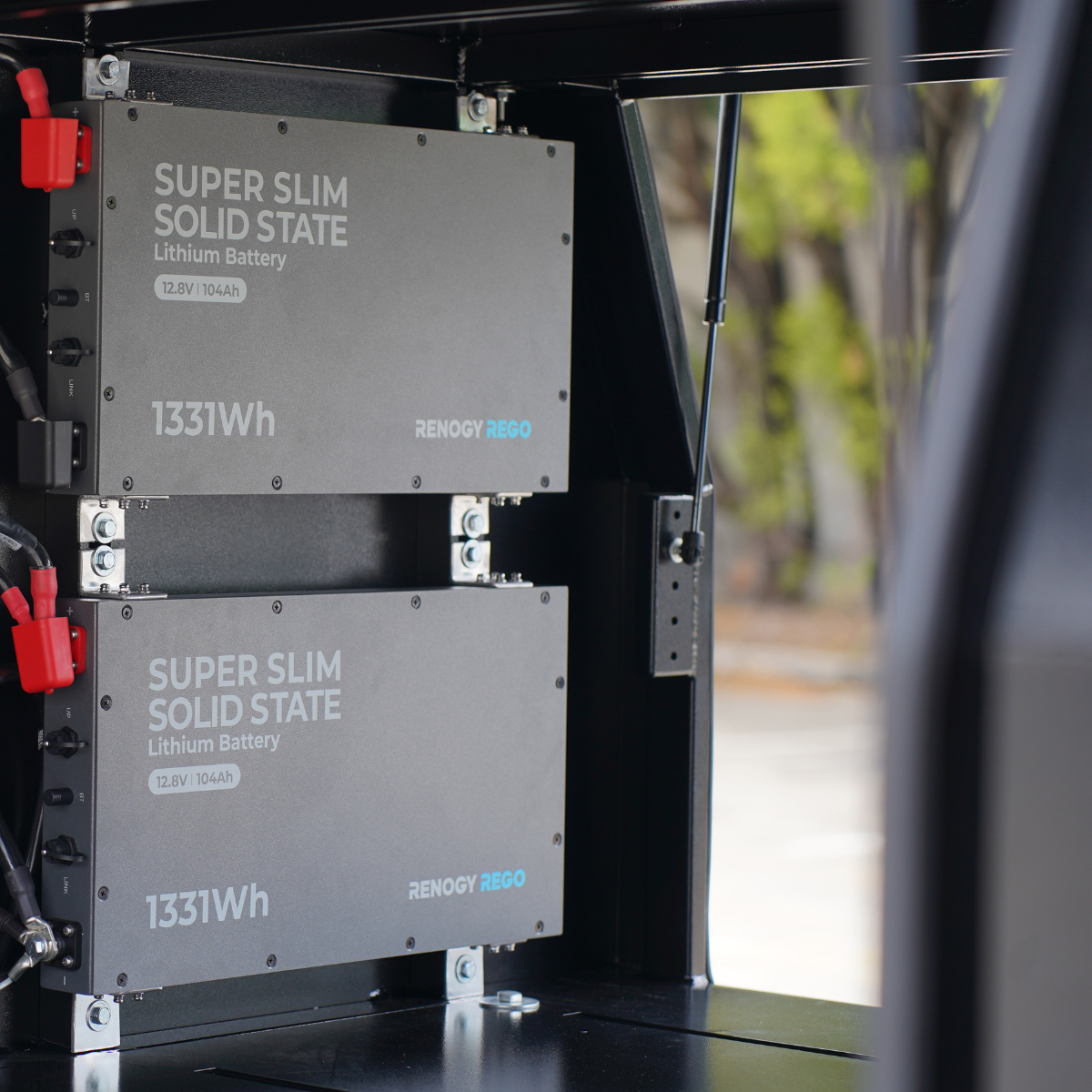

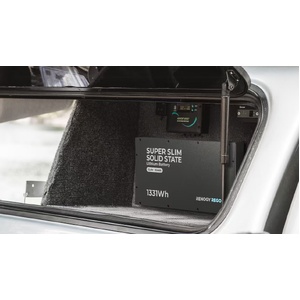

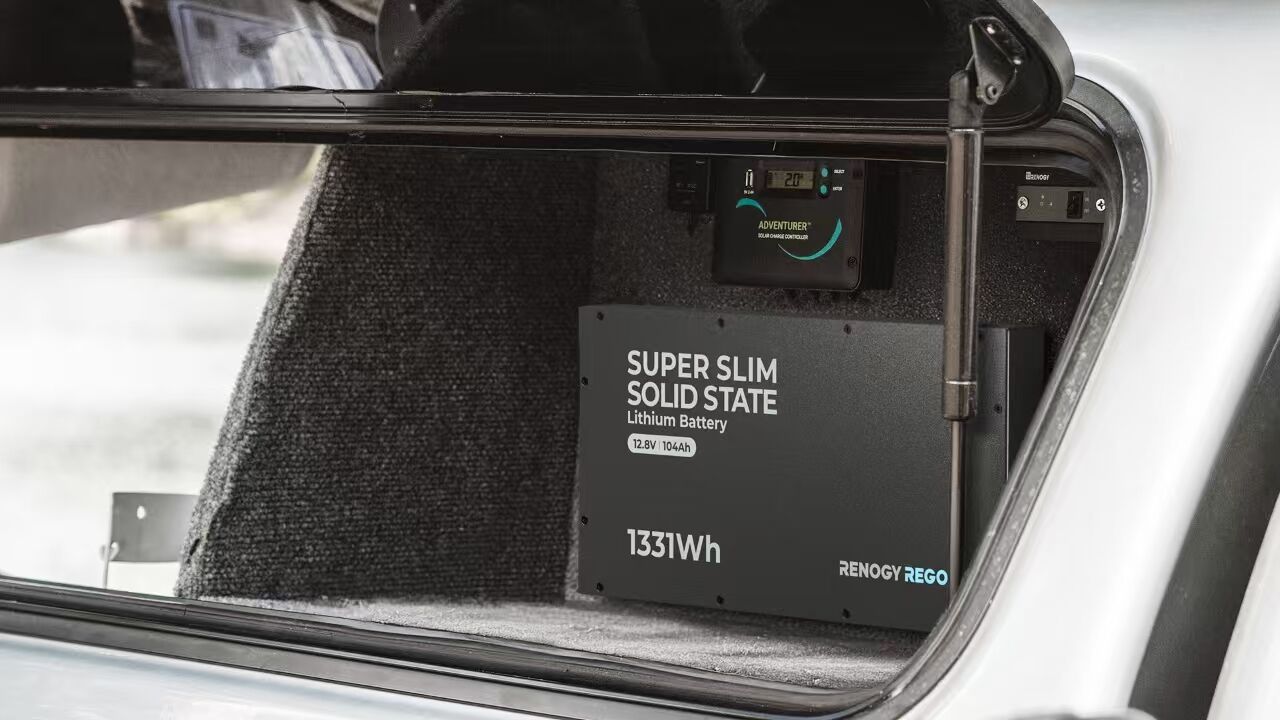

As thin as 2.4 inch / 61 mm, the Renogy Slimline LiFePO4 Battery can snugly fit into the back of seat, under seat cabins, or other tight spaces in overlanding vehicles.
Built Tough for the Wild
When the off-road life calls, the Renogy Slimline LiFePO4 battery is ready to answer. Its rugged IP67-rated enclosure protects against dust, water, and the elements, so you can confidently tackle any terrain. The added UL94 V-0 fire-resistant rating provides critical safety, letting you focus on the thrill of the adventure.
Double Active Safety Design
Designed to safeguard devices, properties, and individuals in an all-around way, the all-new 12V 200Ah Pro LiFePO4 Battery combines software and hardware security to avoid incidents actively.
Travel Light with Confidence
Stop overloading your 4x4 pickup trucks with lead-acid batteries and gas generators. This 12V 104Ah Solid-State LFP Battery helps reduce weight and save more room for your essentials to venture further.
Battery Type
Lithium Iron Phosphate
Nominal Voltage
12.8V
Rated Capacity
104Ah (0.5C, 25℃)
Voltage Range
10V to 14.8V
Maximum Charge Current
100A
Maximum Discharge Current
200A
Peak Discharge Current
290A@30s
Cycle Life (0.5C, 25℃)
6000 Cycles (80% DOD, 80% EOL)
Charge Temperature Range
14°F to 131°F / -10°C to 55°C (14°F to 32°F / -10°C to 0°C, 0.1C)
Discharge Temperature Range
'-4°F to 140°F / -20°C to 60°C
Storage Temperature Range
'-4°F to 140°F / -20°C to 60°C
Operation Relative Humidity
5% to 95%
Connection Method
Series & Parallel (max. 4P4S), Parallel (max. 16P), Series (max. 4S)
Terminal Bolt Size
Terminal Bolt: M8 x 1.25 x 12 mm Long Terminal Bolt: M8 x 1.25 x 16 mm
Recommended Terminal Torque
70.8 in-lb / 8 N·m
Protection Rating
IP67

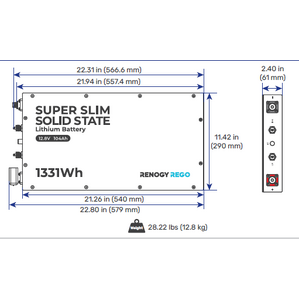

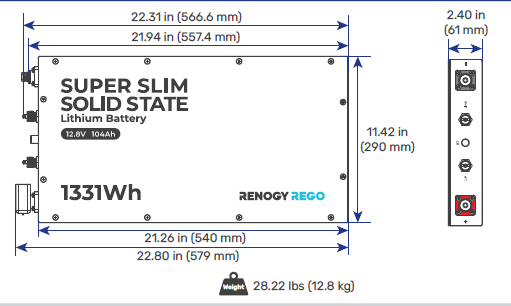

Dimensions
22.8 x 11.4 x 2.4 in / 579 x 290 x 61 mm
Weight
28.22 lbs / 12.8 kg
Warranty: 7 Years Warranty
